Combined Shear Force and Bending Moment Apparatus
Combined Shear Force and Bending Moment Apparatus: to be part of a range of experiments designed to both demonstrate and experimentally confirm basic…
- Price
- On request, by quantity and destination
- Tender documents
- Specification sheet and quotation on request
Product details

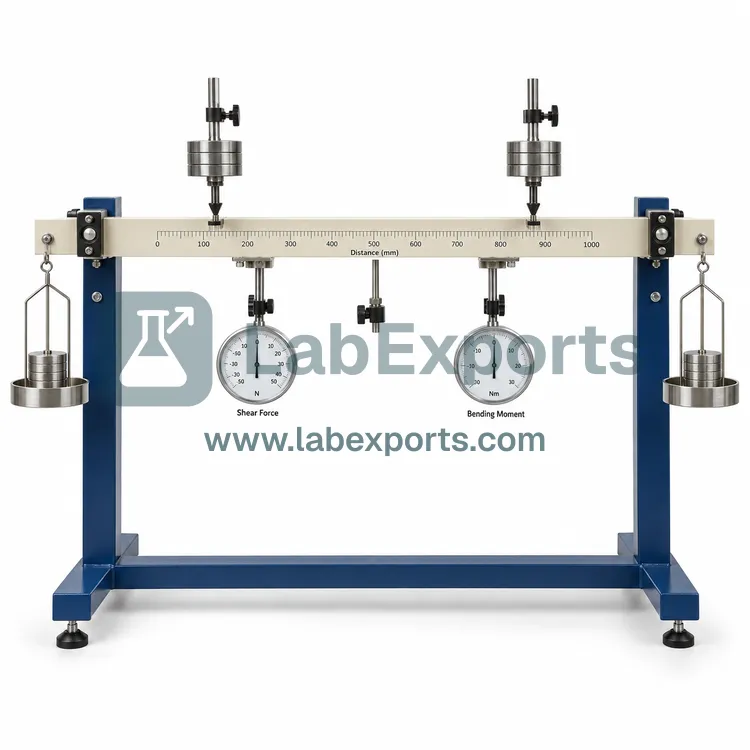

Combined Shear Force and Bending Moment Apparatus
Specification:
- To be part of a range of experiments designed to both demonstrate and experimentally confirm basic engineering principles
- To observe the action of shear force and bending moment at a section in a beam and to compare the measured and theoretical values
- To comprehend the action of shear and moment of resistance in a beam
- To consist of 2 simple supports; a rigid aluminium alloy beam cut into two unequal lengths, with a frictionless hinge at the joint which permits minimal vertical movement, whilst allowing bending
- Analogue spring balance measures direct force at the ‘cut’ section
- Moment lever arm mechanism allows bending moment to be calculated
- Multiple load positions achievable
- To be bench top mounted
- Set of slotted weights included
