Deflection of Frame
Deflection of Frame: two test frames supplied as standard; vertical and horizontal deflection measurement.
- Price
- On request, by quantity and destination
- Tender documents
- Specification sheet and quotation on request
Product details

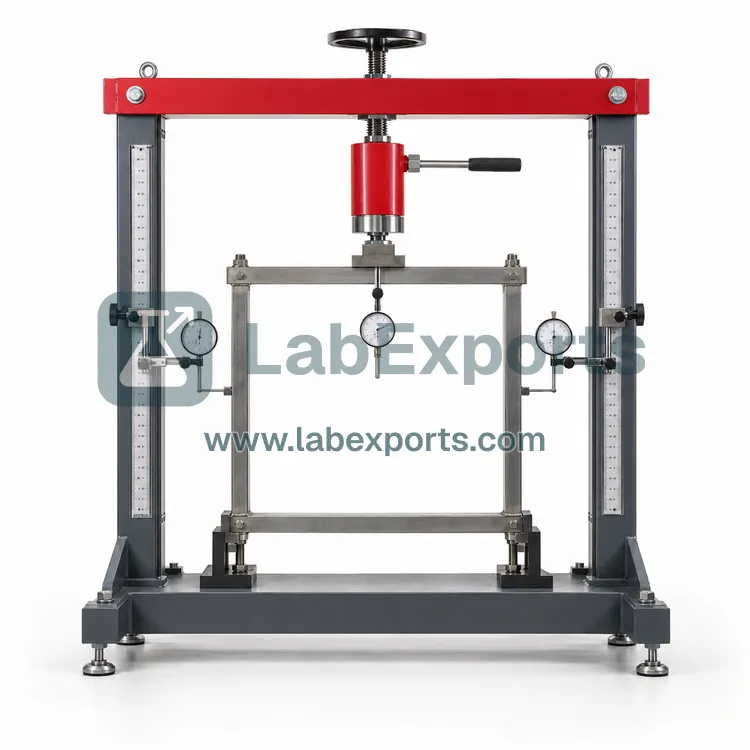

Deflection of Frame
Technical Description:
- Two test frames supplied as standard
- Vertical and horizontal deflection measurement
- Uses Castigliano's theorem with numerical analysis by Simpson's rule
- Study of load, horizontal reactions, sway
- A variety of end conditions provided
- Load cells and dial gauges supplied
- Support reactions, horizontal forces, and portal sway (deflection) must be captured on LB-Q8RFKX Interface (sold separately)
- Text book and accessories included
- Set of weights included
- Must be used with universal Frame and Stand (sold separately)
- Must be used with Interface (sold separately)
- Comprehensive instruction manual provided
