Journal Friction Apparatus
Journal Friction Apparatus: determines the friction torque under variable load, speed and lubrication; the ground steel shaft driven by a speed controlled…
- Price
- On request, by quantity and destination
- Tender documents
- Specification sheet and quotation on request
Product details

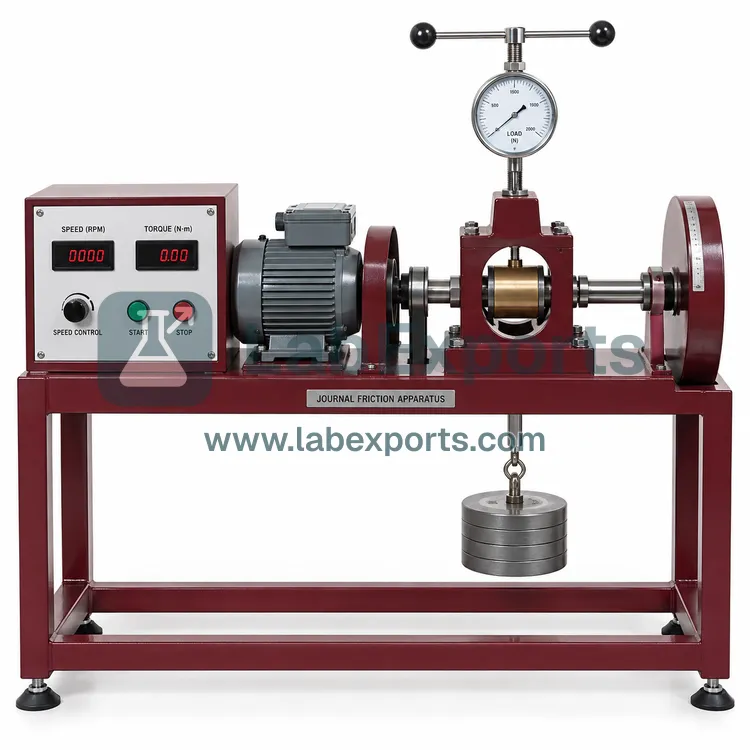

Journal Friction Apparatus
Specification:- Determines the friction torque under variable load , speed and lubrication
- The ground steel shaft driven by a speed controlled motor
- Journal housing fitted with a thermometer, sight feed lubricator and an end cover to retain oil
- Friction torque measured by a balance arm with added weights
- Load applied to the floating journal sleeve through a 4:1 linkage
- Journal sleeves in phosphor bronze, sintered bronze and impregnated PTFE supplied
- An electronic tachometer to measure the shaft speed
- An Instruction manual for student and lecturer provided.
- Set of weights.
